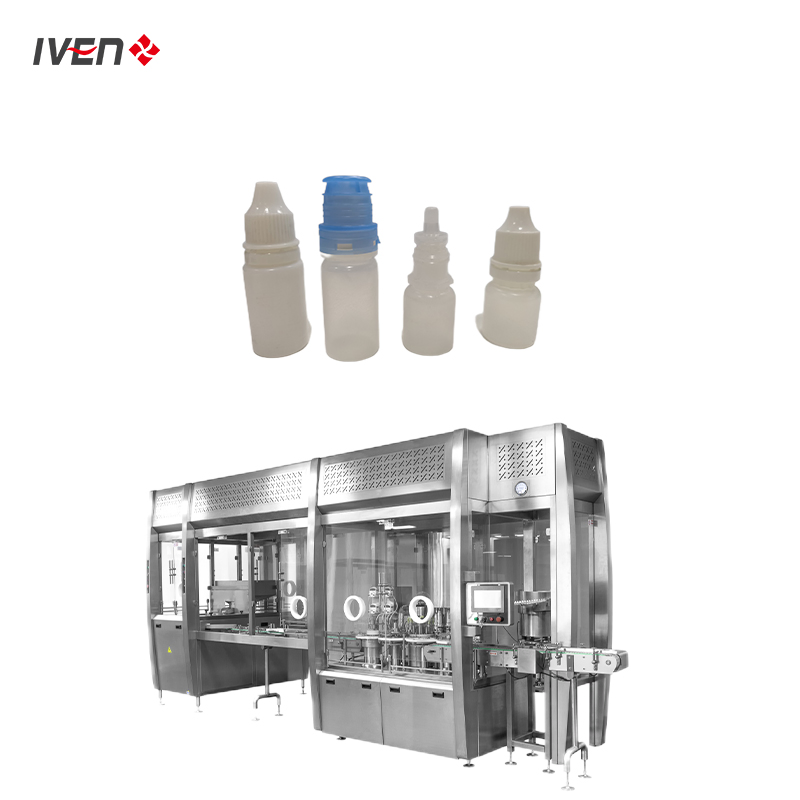

Advanced Eye Drop Dosing and Sealing Machinery / Automated Eye Care Manufacturing Line
A high-efficiency solution for sterile eye drop bottling, fully conforming to GMP requirements.
📊 Basic Information
Model NO.
Customized IVEN -1
Fill Range
10-50ml (≤49ml)
Filling Principle
Auger / Plunger Ceramic / Peristaltic
Pump Type
Ceramic, Peristaltic, Metal Pump
Filling Speed
3500-4000 Bottles/Hour
Measurement Error
≤ ± 0.5%
Work Pressure
6 ~ 8 Kg/cm²
Power Supply
AC 380V/3p 50Hz
Process Type
Washing, Sterilizing, Filling, Stoppering, Capping
🛠️ Product Description
This series of filling units is specifically designed for the pharmaceutical industry, focusing on the high-precision filling, plugging, and cap screwing of sterile eye drop bottles. It is an advanced alternative to imported machinery, ensuring full compliance with international GMP standards.
💡 Main Features

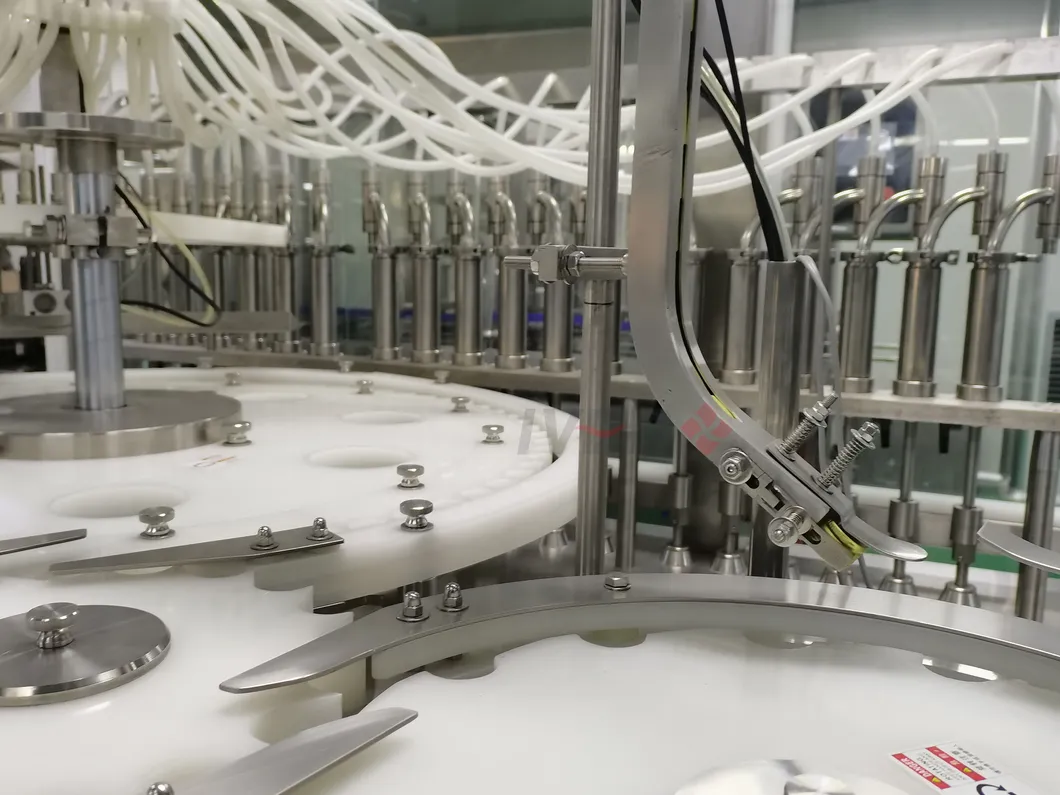

- High Precision Filling: Utilizes plunger ceramic pumps or peristaltic pumps to prevent liquid contamination.

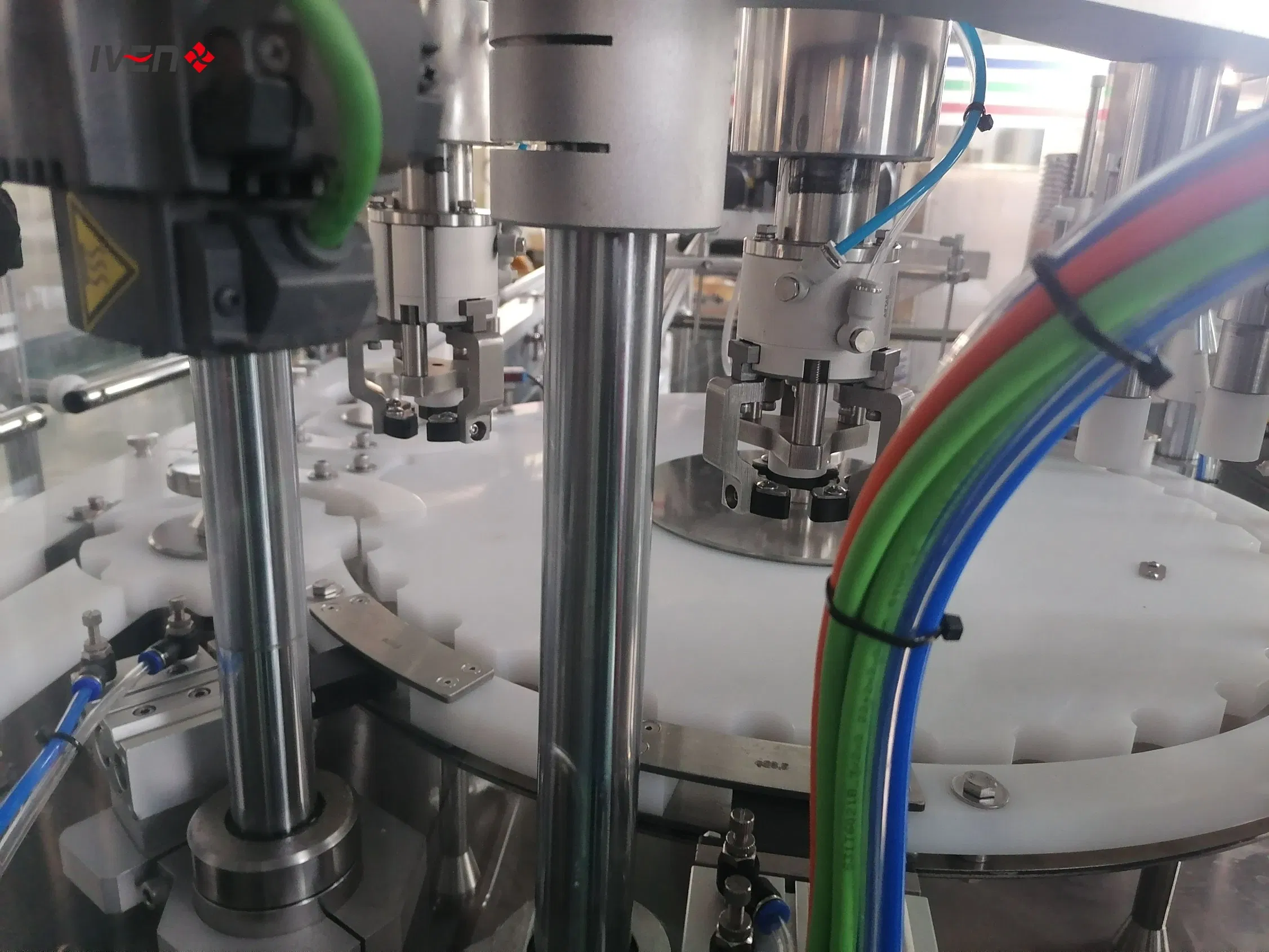

- Accurate Stoppering: Mechanical hand technology ensures precise positioning and zero-error plugging.
- Integrated Operation: Combines filling and cap screwing with servo driving for easy volume adjustment via HMI.
- Sanitary Design: Compatible with CIP/SIP cleaning and sterilization systems.
- Smart Automation: PLC control with "No Bottle - No Fill" detection and variable frequency speed control.
- Anti-Leaking: Bottom-up filling mechanism prevents bubble formation and splash.
- Versatile Application: Adjustable torque air-gripper heads protect bottles and caps from damage.
📋 Product Parameters
| Capacity (160ml) |
30-50 bpm |
60-80 bpm |
90-120 bpm |
200-250 bpm |
| Filling Heads |
4 heads |
8 heads |
12 heads |
24 heads |
| Plugging/Capping |
1 head |
2 heads |
8 heads |
18 heads |
| Filling Accuracy |
≤±0.5% |
| Filling Range |
30-500ml (Customizable) |
| Machine Weight |
1200 kg |
1800 kg |
3000 kg |
3500 kg |

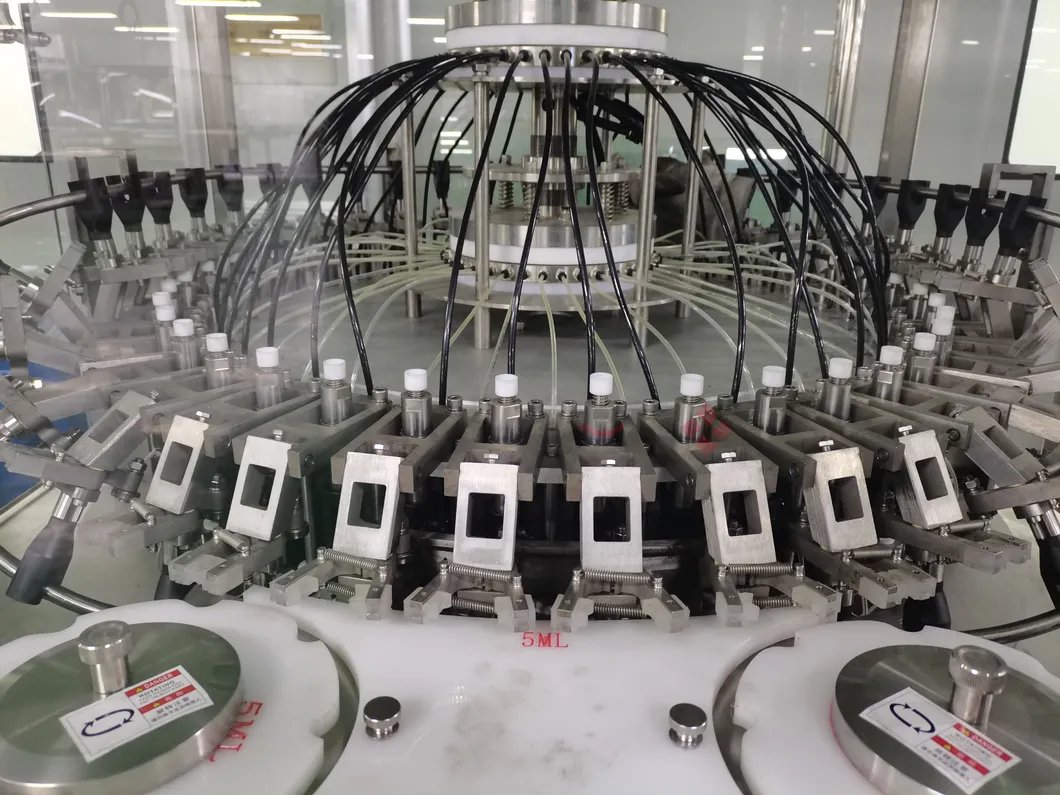

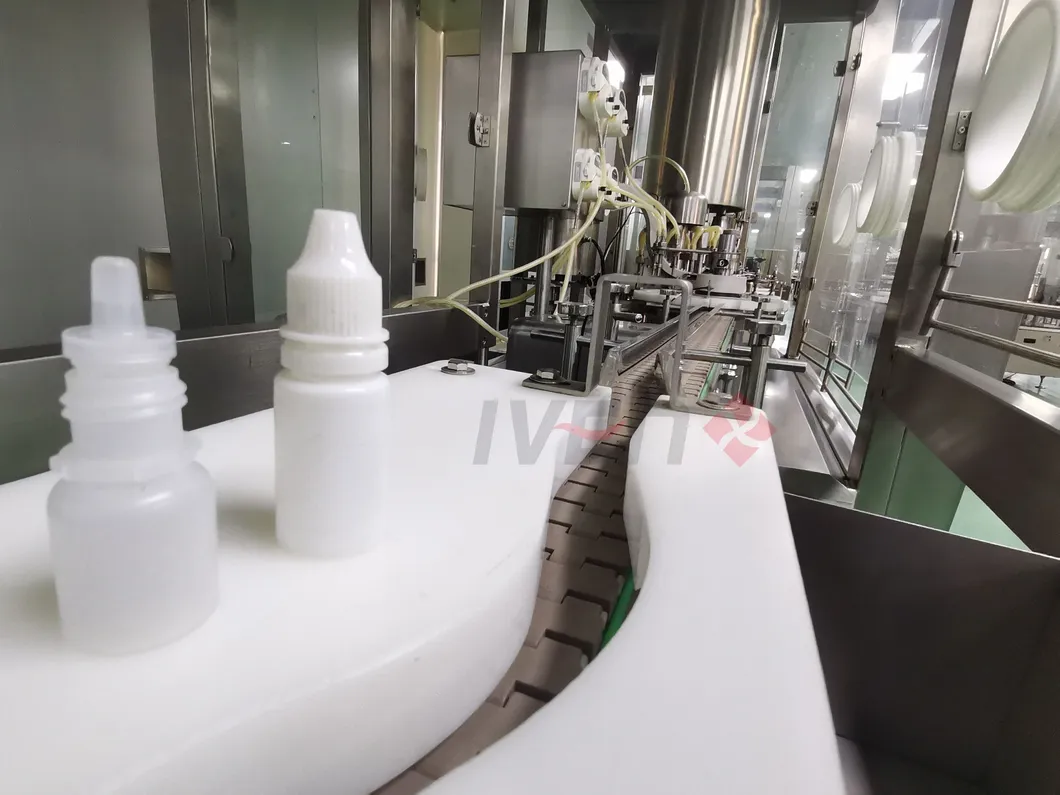

🏢 Technical Gallery
❓ Frequently Asked Questions
What is the filling accuracy of the eye drop machine?
The machine offers a high precision filling accuracy of ≤±0.5% using ceramic or peristaltic pumps.
Can this machine handle different bottle sizes?
Yes, the line is suitable for various bottle specifications, and adjustments can be completed conveniently within a short time.
Is the equipment GMP compliant?
Absolutely. The machinery is fully designed and manufactured to meet stringent GMP requirements for pharmaceutical production.
Does the machine support sterilization?
Yes, it can be equipped with optional CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems.
What is the maximum production capacity?
Depending on the configuration, capacity ranges from 30 bpm to a high-speed version of 250 bpm.
What happens if a bottle is missing on the line?
The PLC control system includes a "no bottle, no filling" sensor to prevent waste and maintain cleanliness.
