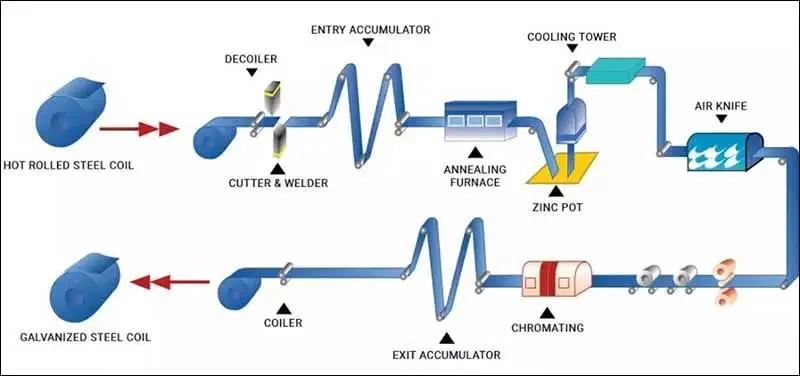

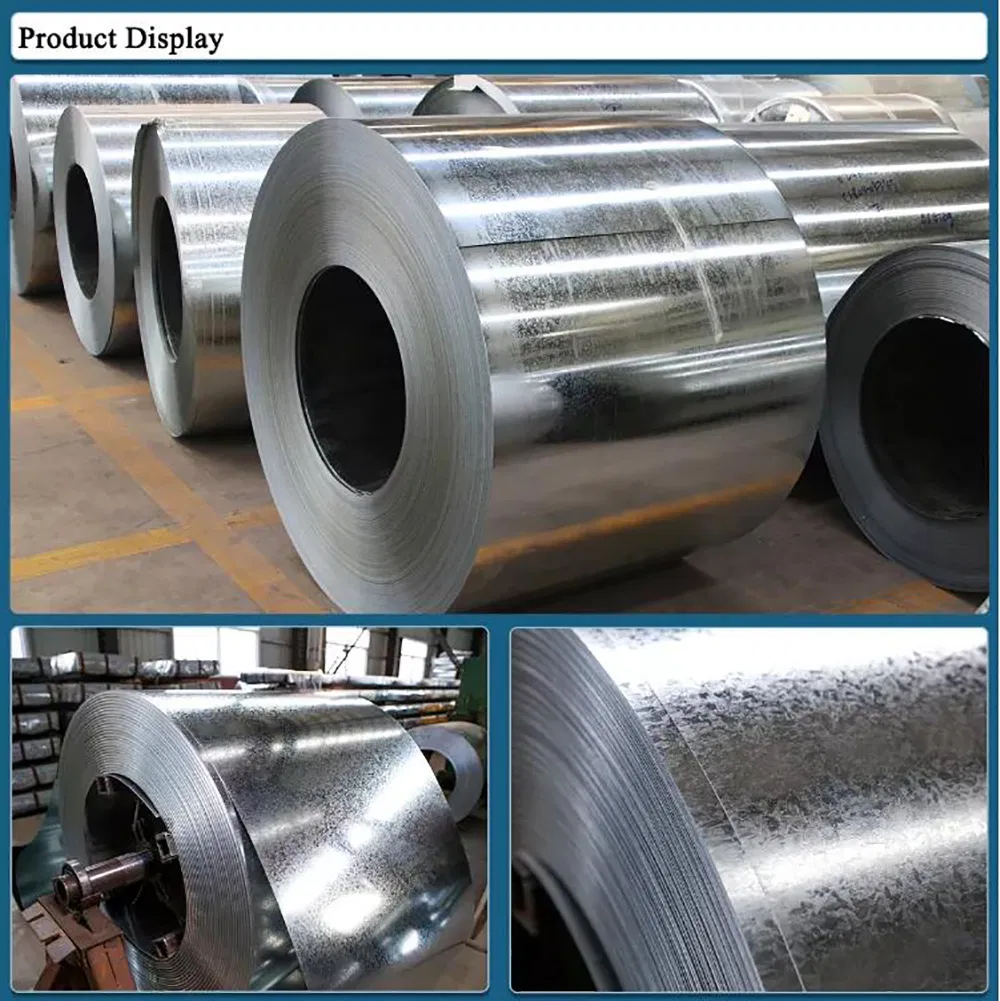

Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc's characteristics.
| Technical Specifications | |
|---|---|
| Standard | ISO, JIS, AS EN, ASTM |
| Grade | DX51D, DX52D, DX53D, SGCC, SGCH, G350, G450, G550 |
| Width Range | 600mm to 1500mm |
| Thickness | 0.125mm to 3.5mm |
| Zinc Coating | 30g/m2 to 275g/m2 |

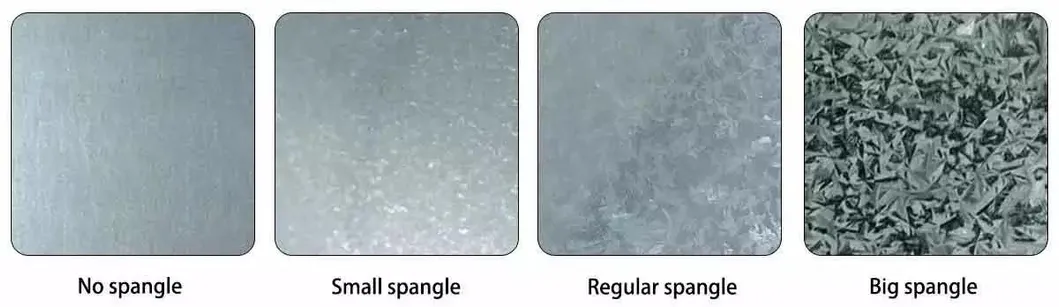

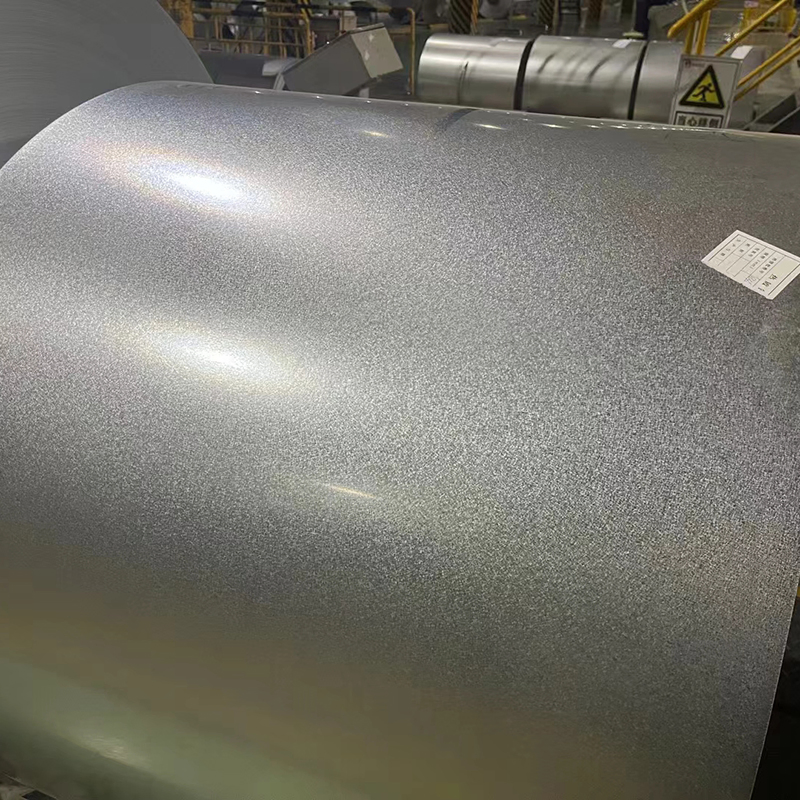

| Spangle | Regular, Minimum, Large, Zero Spangle |
| Surface Treatment | Unoil, Dry, Chromate Passivated |
Building & Construction: Roofing, Terrace, Window Frames.
Doors: Rolling-up Doors, Shutters, Mobile Houses.
Interior: Walls, Steel Structures, Ceilings, Elevators.
Appliances: Fridges, Washing Machines, Microwaves.
Transportation: Auto Panels, Carriage Panels.

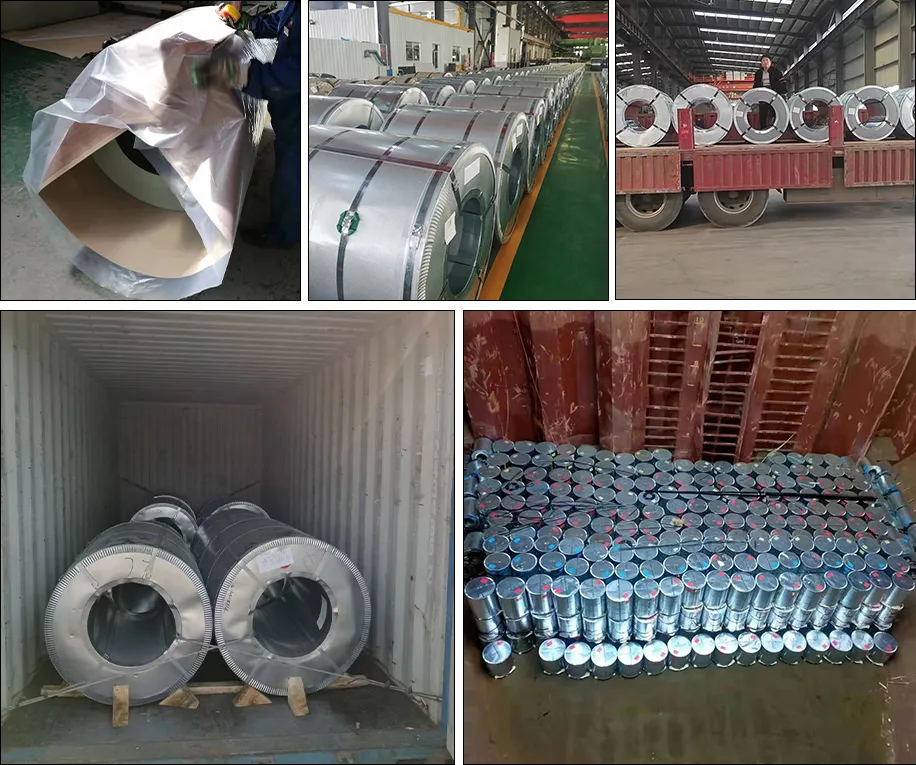

| Packaging | 3 layers (Kraft paper, water plastic film, GI steel sheet) with steel strips and inner sleeve. |
| Monthly Capacity | 10,000 Tons |
| Loading Ports | Tianjin / Qingdao / Shanghai Port |
