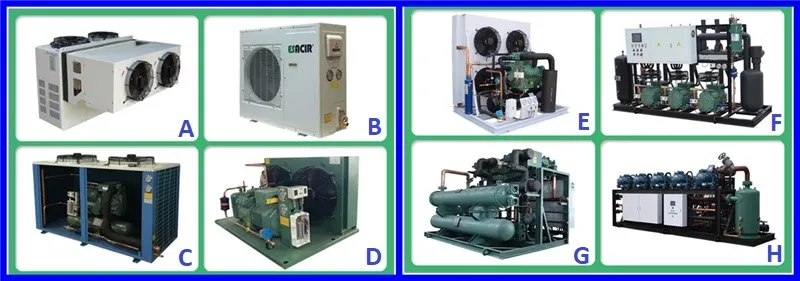

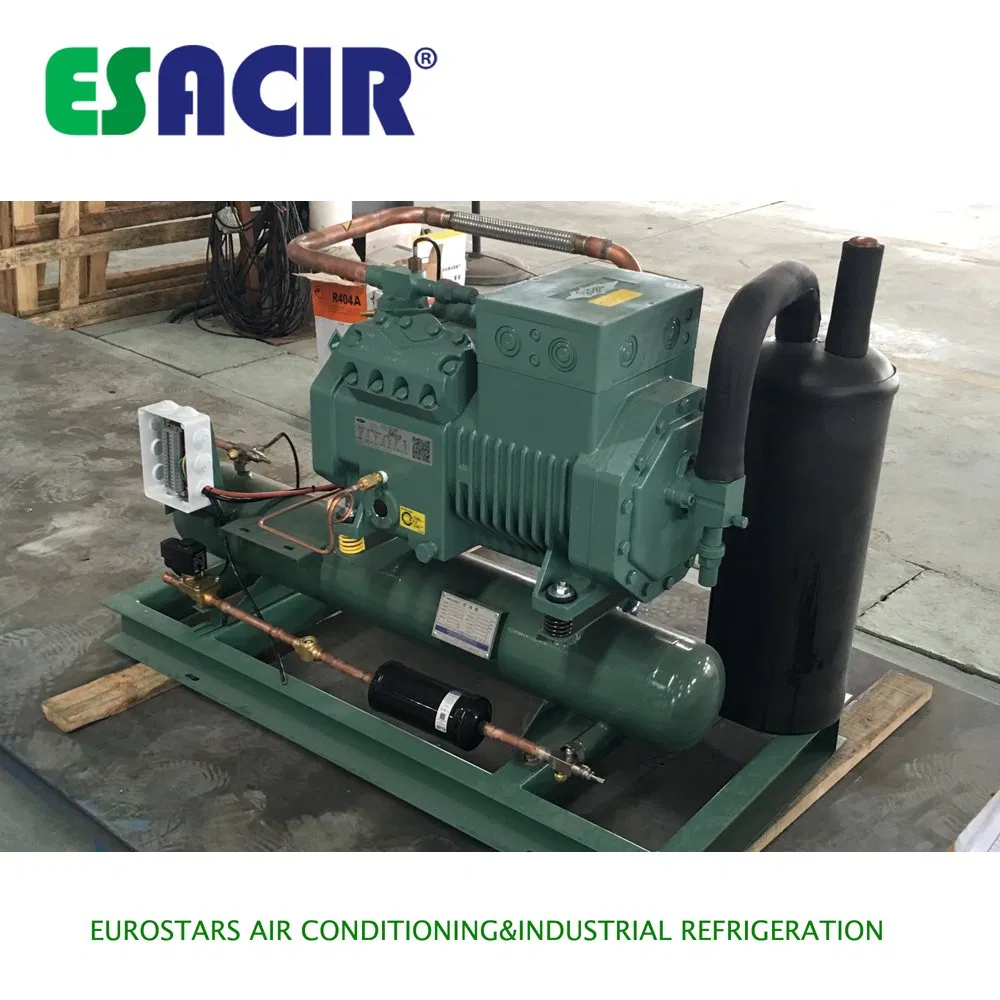

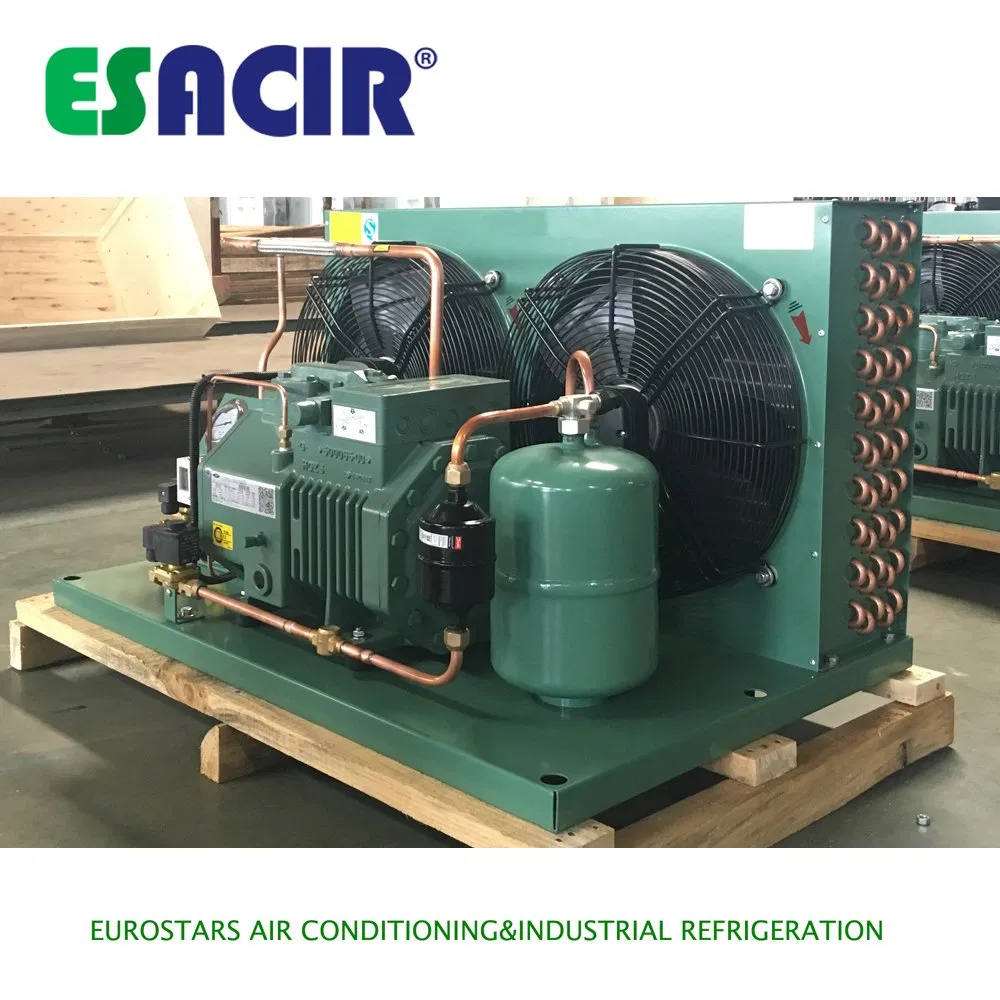

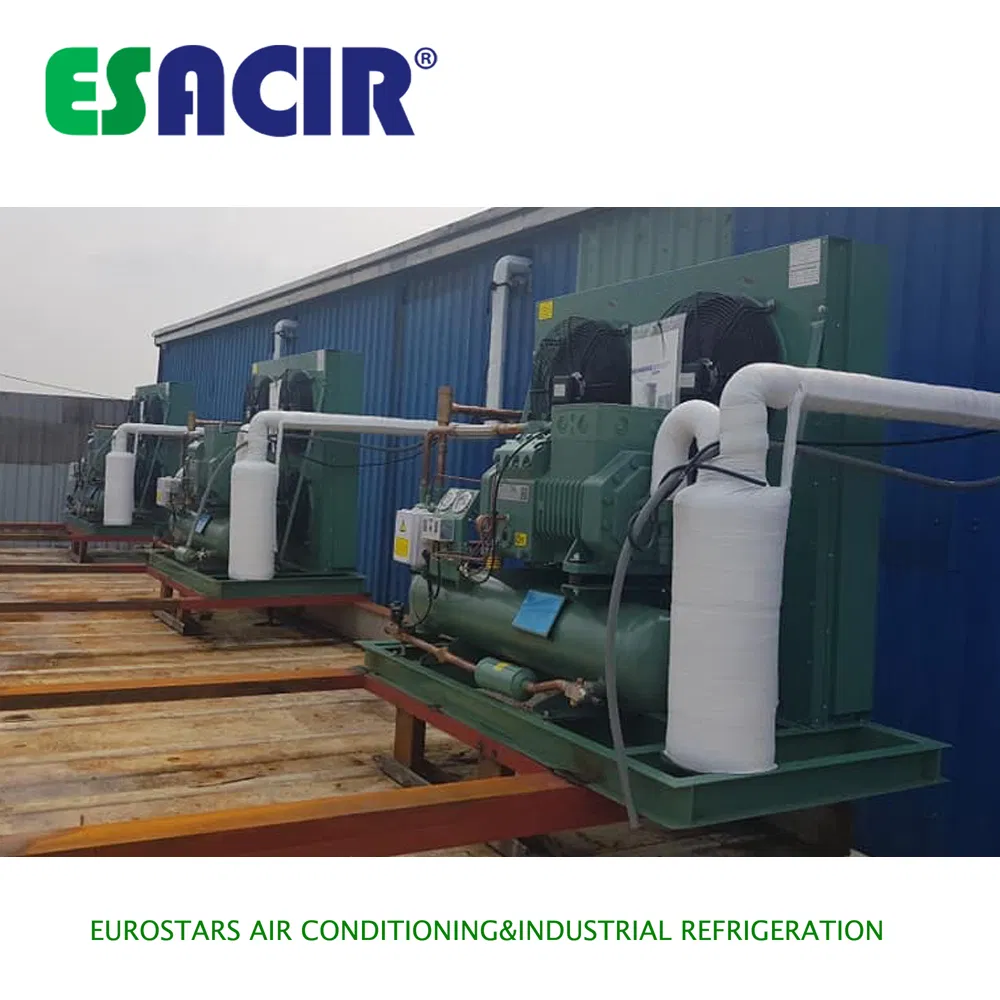

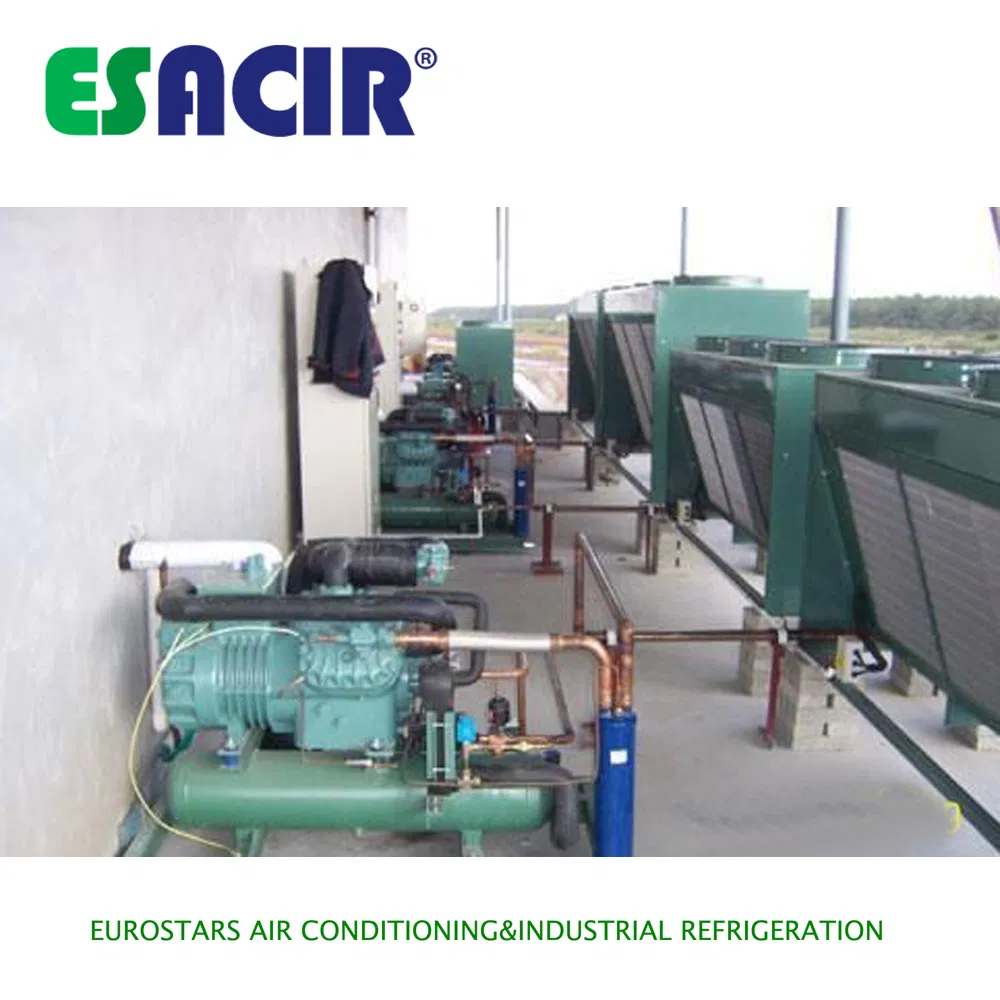

Condensing unit is with original semi-hermetic reciprocating compressor. Applicable for medium and high temperature and medium and low temperature. Beautiful design, rational construction and convenient installation made the units widely used in hotel, restaurant, medical, agricultural, chemical industry, and all other field where cold storage is needed.
| ITEM | Model | Compressor (R404A/R507A) | Cooling Capa. (W) | Power Input(KW) | Cold Room Temp |
|---|---|---|---|---|---|
| 1 | ESBA-02NJOBY | 2GES-2Y | 4060 | 1.94 | -10ºC~5ºC |
| 2 | ESBA-02NJOBY | 2FES-2Y | 5010 | 2.41 | -10ºC~5ºC |
| 3 | ESBA-02NJOBY | 2EES-2Y | 6490 | 2.79 | -10ºC~5ºC |
| 4 | ESBA-02NJOBY | 2DES-2Y | 7770 | 3.41 | -10ºC~5ºC |
| 5 | ESBA-03NJOBY | 2CES-3Y | 9590 | 4.16 | -10ºC~5ºC |
| ITEM | Model | Compressor (R22) | Cooling Capa. (W) | Power Input(KW) | Cold Room Temp |
|---|---|---|---|---|---|
| 1 | ESBW-03NJOB | 2FES-3 | 5650 | 1.98 | -10ºC~5ºC |
| 2 | ESBW-03NJOB | 2EES-3 | 7050 | 2.32 | -10ºC~5ºC |
| 3 | ESBW-03NJOB | 2DES-3 | 8410 | 2.77 | -10ºC~5ºC |

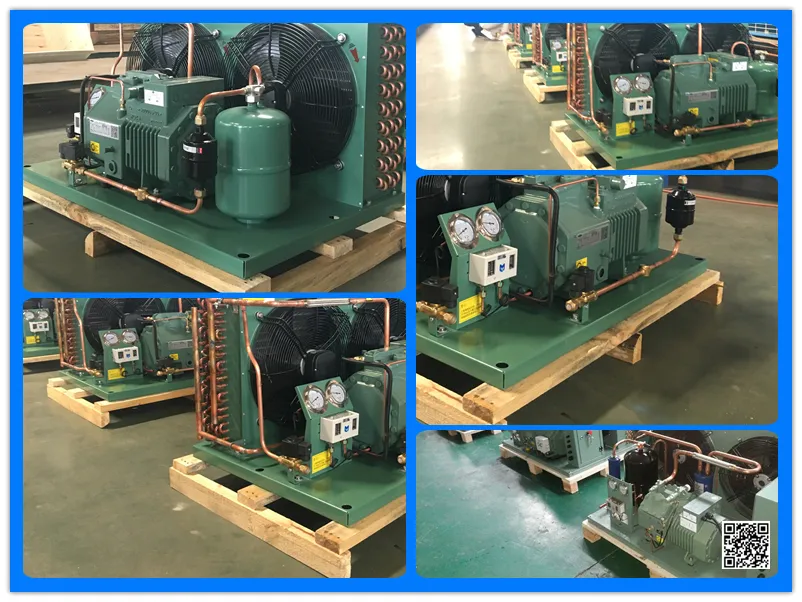

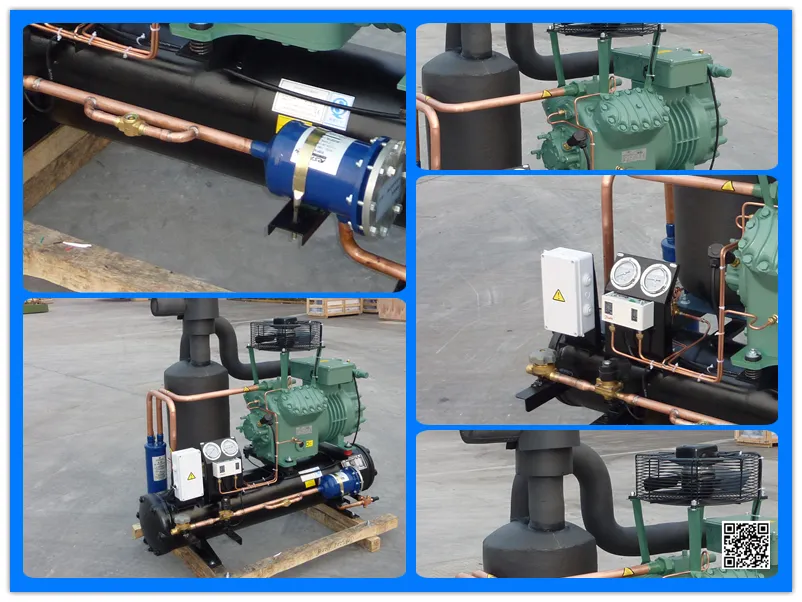

Key components included: 1. Compressor, 2. Condenser, 3. Oil heating, 4. Liquid receiver, 5. Filter, 6. Sight glasses, 7. Solenoid valve, 8. H/L P gauge, 9. Mechanical Pressure controller, 10. Oil pressure protection, 11. Vibration eliminator, 12. Oil separator, 13. Gas separator, 14. Suction filter.

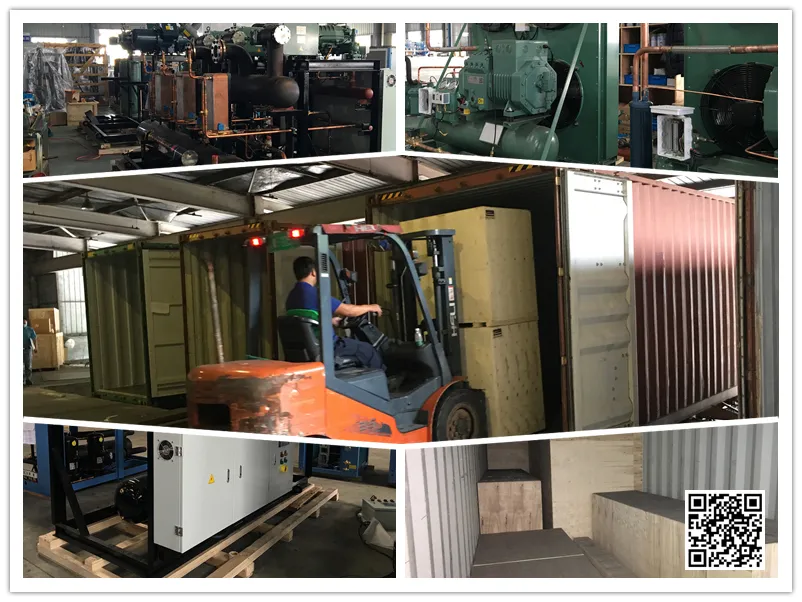

For Cold Room Machine: Standard plywood package with bottom pallet for easy transportation and maximum protection during container shipment.
For Cold Room Panels: Each panel is wrapped with plastic film and corners are protected with brown paper.
